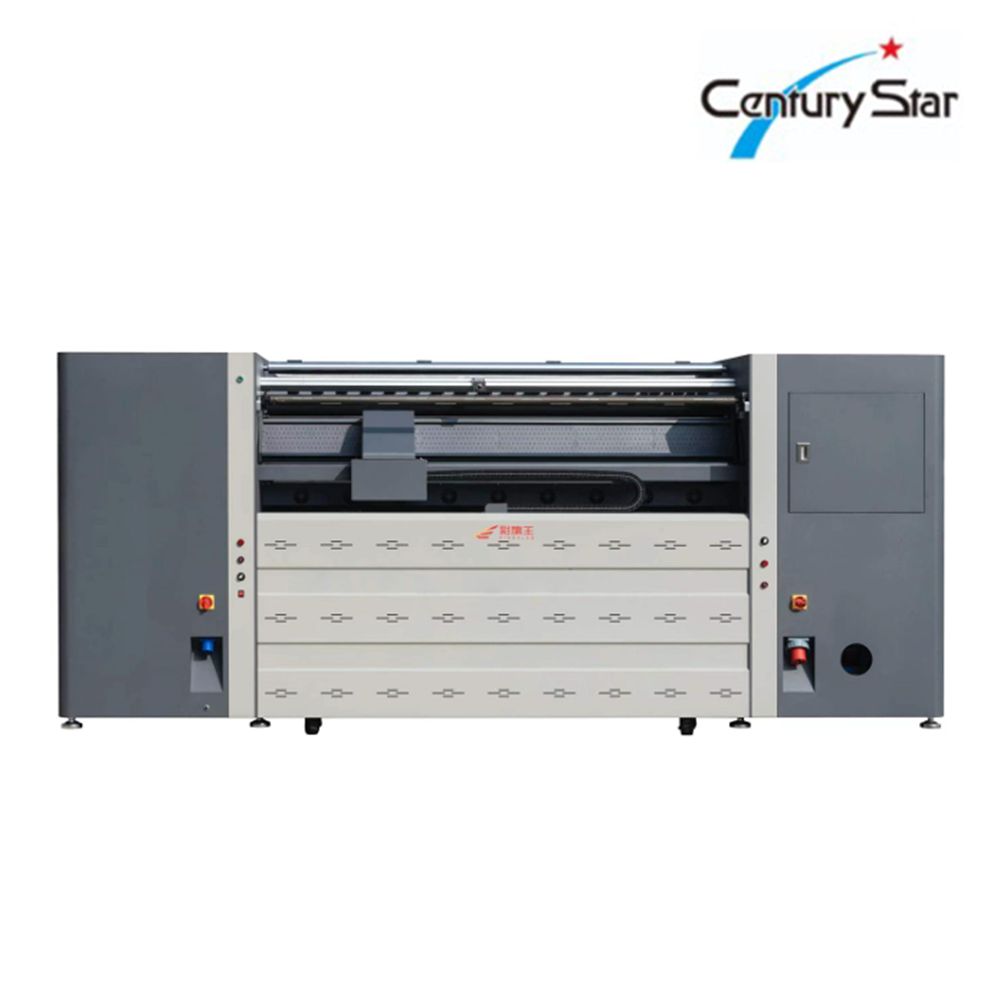

CSP-DS2100 Direct Dye-Sub Printer

Product Details

• 4+4 EPSON I3200 print heads for faster output and enhanced color depth.
• Supports unidirectional and bidirectional printing, optimizing workflow for different print requirements.
• High-Speed, High-Resolution Performance
• 360×1200 DPI at 100 m²/h (2 Pass) – For ultra-fast production.
• 360×1800 DPI at 85 m²/h (3 Pass) – A balance of speed and quality.
• 720×1200 DPI at 65 m²/h (4 Pass) – For the highest resolution and detail.

• Uses dye-sublimation inks for vibrant, fade-resistant prints.
• Supports CMYK ink color configuration for consistent and accurate color reproduction.

• Gigabit Port for high-speed data transfer and seamless workflow.
• Compatible with PhotoPrint, MainTop, Print Factory, and RIIN software.
• Accepts multiple file formats, including Bitmap, TIFF, Quark, Xpress, EPS, and PDF.

• Negative pressure pump ink cleaning system for minimal maintenance and optimal performance.
• ICC profile color control for professional-grade color accuracy.
• Operating temperature: 20°C – 28°C | Humidity: 40%-60% RH for stable and consistent operation.

• Dimensions: 4164mm (L) × 1697mm (W) × 1998mm (H).
• Weight: Net 2000 KG, built for continuous high-volume production.
• Compatible with polyester textiles, making it ideal for textile manufacturers.
