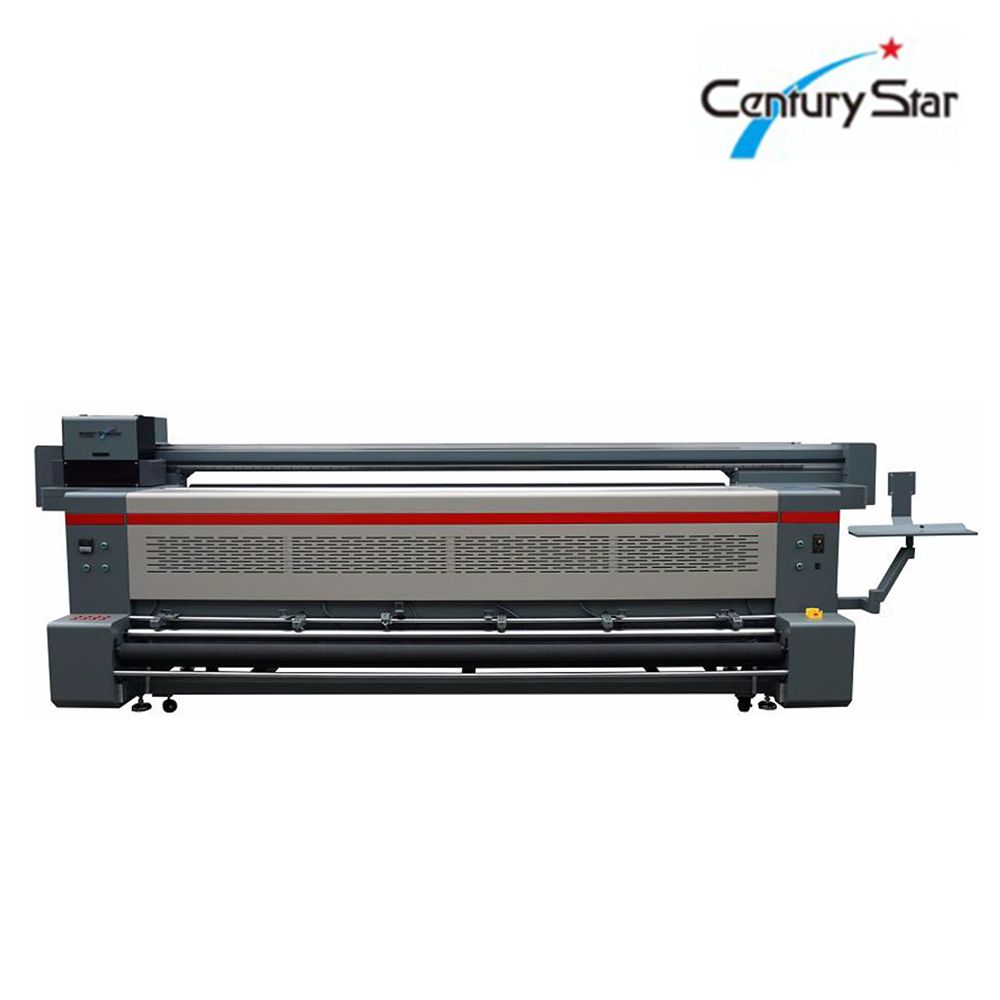

CSP-3200 Direct Dye-Sub Printer

Product Details

• 3200mm print width, ideal for large fabric-based applications.
• Available in 4 or 8 print head configurations to scale production.
• Industry-Leading Print Speed & Accuracy
  • 4 Print Heads: Production Mode: 180 m²/h, High-Quality Mode: 135 m²/h, High-Precision Mode: 100 m²/h
  • 8 Print Heads: Production Mode: 310 m²/h, High-Quality Mode: 230 m²/h, High-Precision Mode: 205 m²/h
• Print Accuracy Options: 360×1200 DPI / 360×1800 DPI / 720×1200 DPI

• Uses EPSON I3200 print heads, delivering sharp, high-resolution prints with consistent ink application.
• Supports unidirectional and bidirectional printing for optimal efficiency.

• Dye-sublimation ink system for long-lasting, high-quality prints.
• CMYK ink color configuration ensures excellent color accuracy and vibrancy.
• Negative pressure pump ink cleaning system for consistent performance and reduced downtime.

• Gigabit port for high-speed data transfer, ensuring smooth operations.
• Compatible with Photo Print, MainTop, Wasatch, and ONYX RIP software.
• Accepts multiple file formats: Bitmap, TIFF, Quark, Xpress, EPS, PDF.

• Power Requirements: 220V±10% (AC 50/60Hz).
• Operates in a temperature range of 20°C – 28°C with humidity levels of 40% – 70% RH.

• Dimensions: 5100mm (L) × 1100mm (W) × 1620mm (H).
• Weight: Net 1500 KG | Gross 1600 KG.
• Prints on polyester textiles, making it ideal for banners, soft signage, and fashion applications.
